DEHNbox

Combined lightning current and surge arrester

Capable of carrying lightning currents up to 10 kA (10/350 µs)
Low voltage protection level, capable of protecting terminal equipment
For installation in conformity with the lightning protection zone concept at the boundaries from 0_A – 2 and higher

Easy to use

Suitable for wall mounting
Fast and easy installation due to spring-loaded terminals
Easy retrofitting of surge protection

Safe installation and operation (DBX TC B 180)

Status indication for easy maintenance
RJ45 connection possibility for plug & play
Universal use up to 1 Gbit

Details

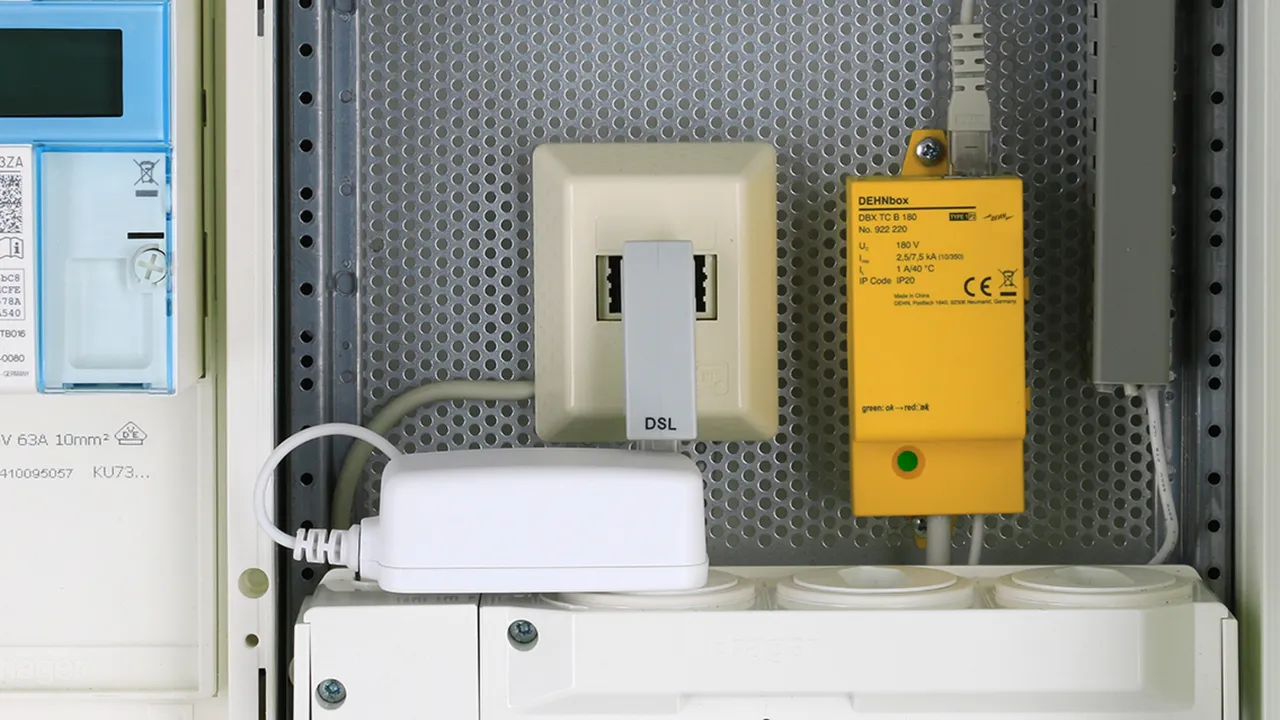

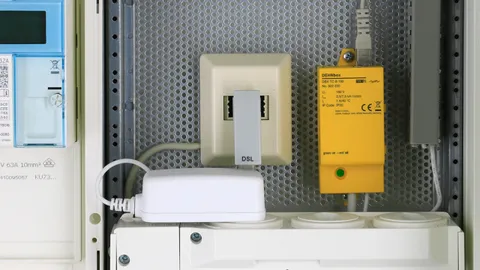

RJ45 socket at the output for direct connection to the router (DBX TC B 180).

lorem ipsum — RJ45 socket at the output for direct connection to the router (DBX TC B 180).

Push-in terminals for fast connection without tools (DBX TC B 180)

Side-by-side mounting of several devices thanks to slide-in dovetail connections on the enclosures (DBX TC B 180).

??store.product.family.furtherInformations_de??

??store.product.family.similarTopics_de??

DBX TC B 180

Space-saving, compact surge arrester in a surface-mounted plastic enclosure with push-in connection technology and status indication for protecting one pair of unearthed balanced interfaces, particularly telecommunication interfaces up to VVDSL and G.fast (up to 1 Gbit/s). Direct / indirect shield earthing possible. Connection of a pair or a patch cable with RJ45 plug at the output.

Tests by Deutsche Telekom Technik GmbH confirm compatibility with vectoring VDSL (VVDSL), super vectoring VDSL (SVVDSL) and G.Fast.

1 ??store.product_de??

??store.product.number.short_de?? 922220 DBX TC B 180

??store.product.gtin_de?? 4013364433953, ??store.product.customsTariffNumber_de??: 85363030, ??store.product.grossWeight_de??: 93.63 g, ??store.product.packaging_de??: 1.00 pc(s)
