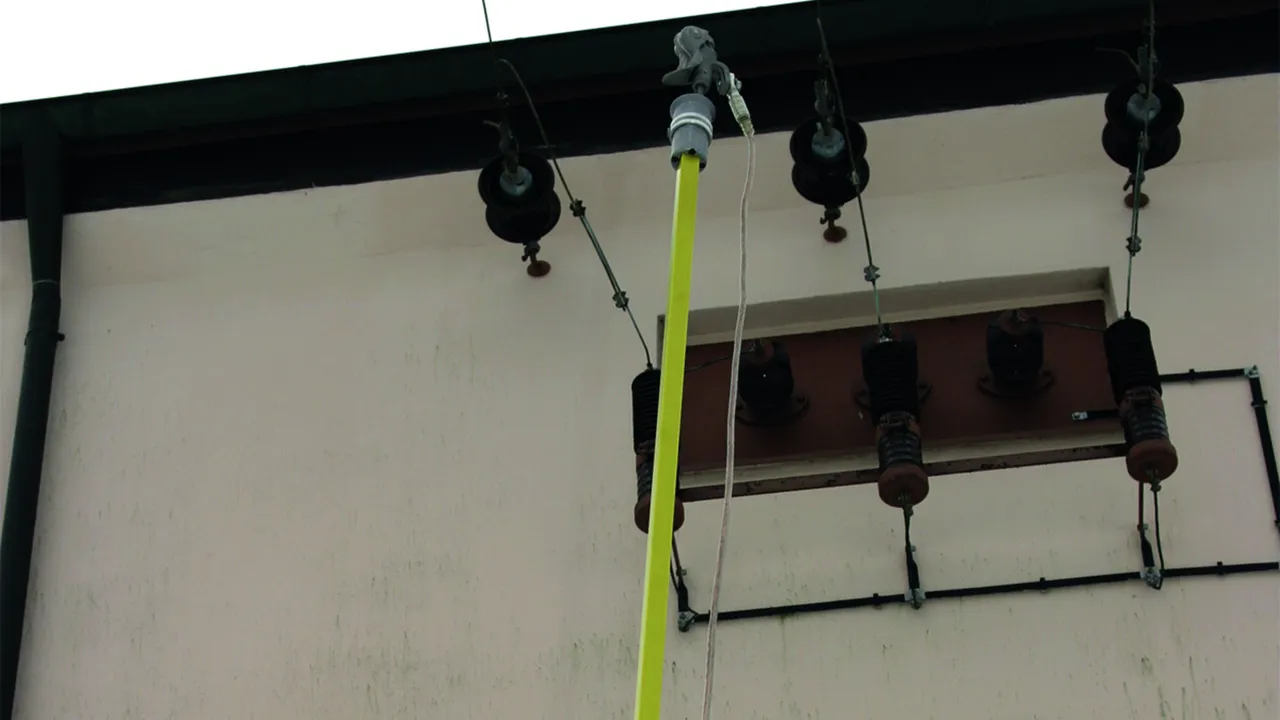

Earthing Sticks for Overhead Lines

  • For outdoor use
  • Robust aluminium cone coupling
  • Total lengths up to 6000 mm
  • Telescopic stick, length continuously adjustable by star knob
  • For phase screw clamps and clamps with long T pin shaft

Details

Load values for extendible earthing sticks.
Robust aluminium threaded coupling allows positive and non-positive connection due to the screw connection and gearing.
End fitting with eye (Al/rubber) or plug-in coupling with eye (Al/rubber) for extending the handle.
Lockable adjusting ring
The adjusting ring on the cone has the following functions:
– Position "AUF" (= OPEN): Stick can be removed after the clamp has been attached
– Position "ZU" (= CLOSED): Stick and clamp remain coupled even after the earthing and short-circuiting device has been attached
Earthing stick with aluminium cone coupling used for clamps with long shaft in accordance with DIN 48087.

Telescopic, with T pin shaft

2 ??store.products_de??

??store.product.number.short_de?? 769400 ESTC SQL 4000

??store.product.gtin_de?? 4013364080881, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 4.42 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Total length (lG max / IG min ) 4015 / 2180 mm
Length (handle) (IH ) 1400 mm
Max. load on the operating head (lG max / IG min ) 10 / 20 kg
Diameter 43 mm
