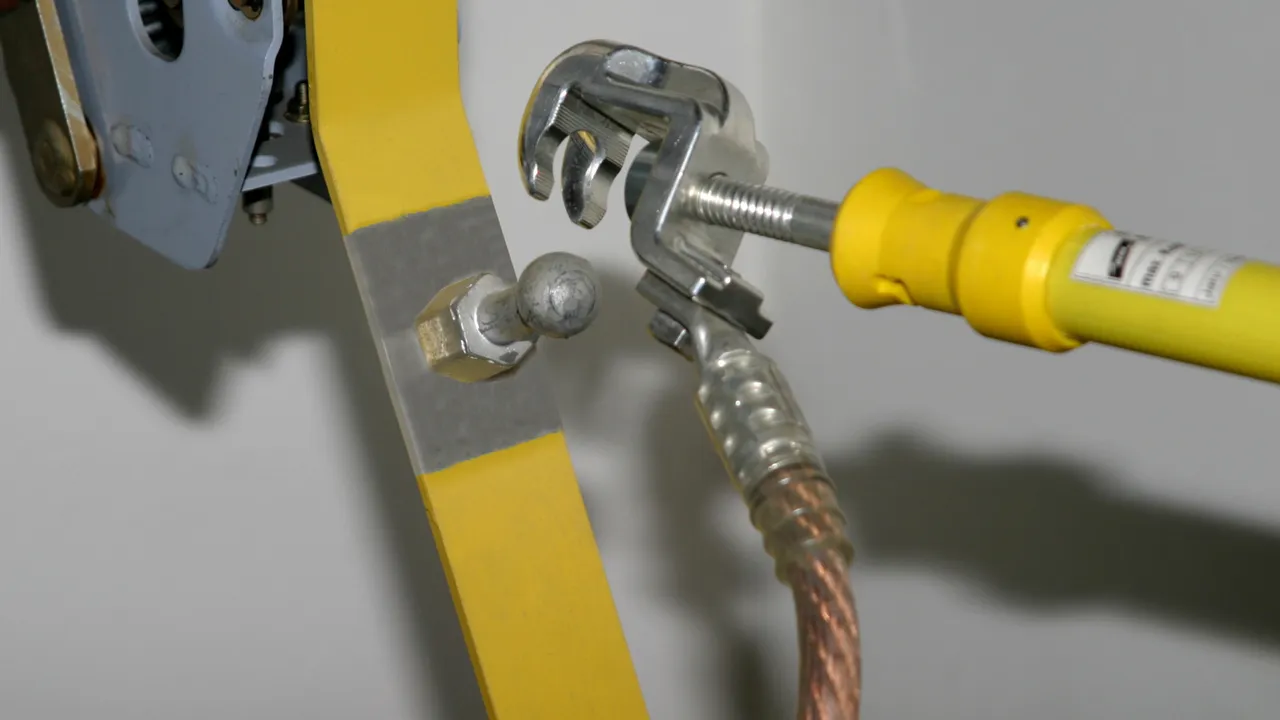

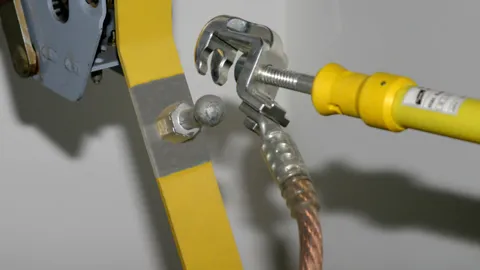

Phase Connecting Elements for Switchgear Installations

To be fitted to the phase cable end of single-pole to five-pole earthing and short-circuiting devices
Type PK1 anti-rotation protection
Other earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator

Details

lorem ipsum — Adjustable ball head cap (4x 90°).

Rigid Ball Head Cap, Hexagon Shaft

2 ??store.products_de??

??store.product.number.short_de?? 772310 KKH 20 SK

??store.product.gtin_de?? 4013364057593, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 469.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

For fixed ball point Ø	20 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

For fixed ball point Ø	20 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (clamp body)	Copper alloy/gal Sn
Material (shaft)	Copper alloy/gal Sn
Material (pressure plate)	Copper alloy/gal Sn

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 772320 KKH 25 SK

??store.product.gtin_de?? 4013364057432, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 785.00 g, ??store.product.packaging_de??: 1.00 pc(s)
