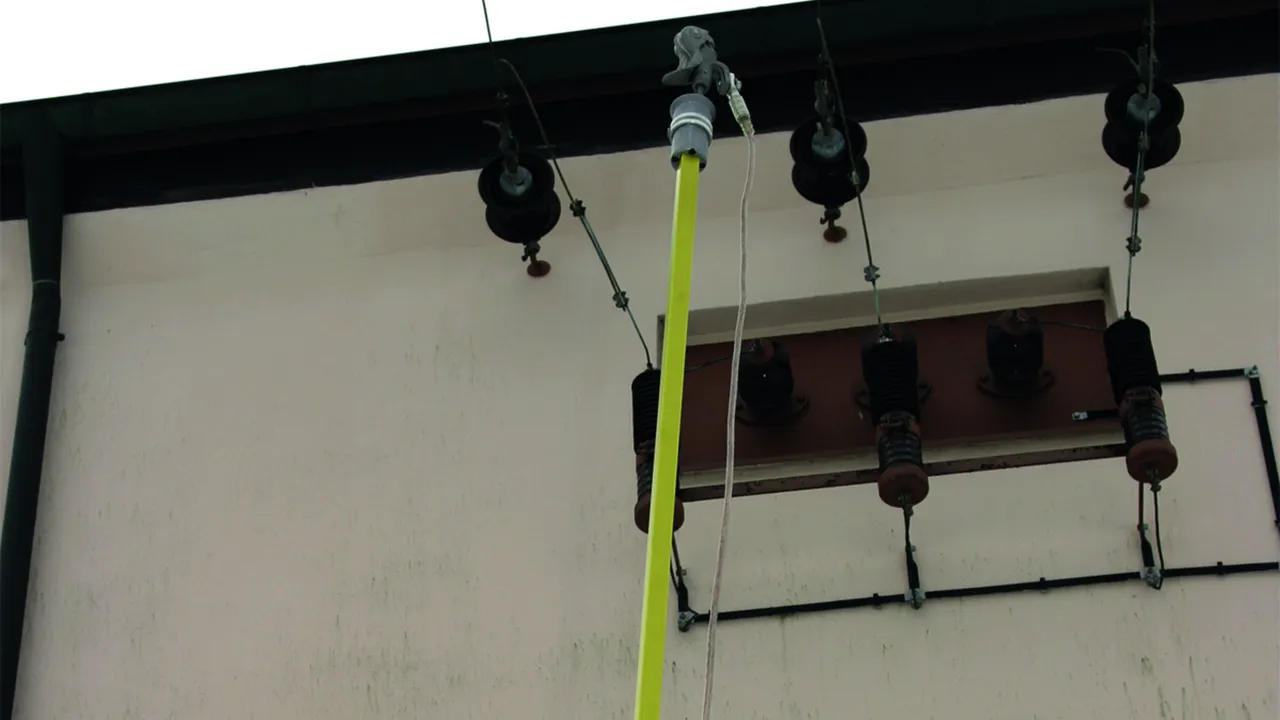

Earthing Sticks for Overhead Lines

For outdoor use
Robust aluminium cone coupling
Total lengths up to 6000 mm
Telescopic stick, length continuously adjustable by star knob
For phase screw clamps and clamps with long T pin shaft

Details

End fitting with eye (Al/rubber) or plug-in coupling with eye (Al/rubber) for extending the handle.

lorem ipsum — End fitting with eye (Al/rubber) or plug-in coupling with eye (Al/rubber) for extending the handle.

Load values for extendible earthing sticks.

**Lockable adjusting ring**
The adjusting ring on the cone has the following functions:
– Position "AUF" (= OPEN): Stick can be removed after the clamp has been attached
– Position "ZU" (= CLOSED): Stick and clamp remain coupled even after the earthing and short-circuiting device has been attached

Robust aluminium threaded coupling allows positive and non-positive connection due to the screw connection and gearing.

Earthing stick with aluminium cone coupling used for clamps with long shaft in accordance with DIN 48087.

Telescopic, with T pin shaft

2 ??store.products_de??

??store.product.number.short_de?? 769400 ESTC SQL 4000

??store.product.gtin_de?? 4013364080881, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 4.42 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Total length (l_{G max} / I_{G min} )	4015 / 2180 mm
Length (handle) (I_H )	1400 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Diameter	43 mm

Total length (l_{G max} / I_{G min} )	4015 / 2180 mm
Length (handle) (I_H )	1400 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Temperature range	–25 °C ... +55 °C
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (threaded coupling, star knob)	Aluminium alloy
Diameter	43 mm
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Earthing stick

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 769500 ESTC SQL 5000

??store.product.gtin_de?? 4013364080904, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 5.02 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Total length (l_{G max} / I_{G min} )	5015 / 2680 mm
Length (handle) (I_H )	1900 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Diameter	43 mm

Total length (l_{G max} / I_{G min} )	5015 / 2680 mm
Length (handle) (I_H )	1900 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Temperature range	–25 °C ... +55 °C
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (threaded coupling, star knob)	Aluminium alloy
Diameter	43 mm
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Earthing stick

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Telescopic, with T pin shaft, plug-in coupling

1 ??store.product_de??

??store.product.number.short_de?? 769300 ESTC SQL STK 3000

??store.product.gtin_de?? 4013364080867, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 3.80 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Total length (l_{G max} / I_{G min} )	3015 / 1760 mm
Length (handle) (I_H )	900 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Diameter	43 mm

Total length (l_{G max} / I_{G min} )	3015 / 1760 mm
Length (handle) (I_H )	900 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Temperature range	–25 °C ... +55 °C
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (threaded coupling, star knob)	Aluminium alloy
Diameter	43 mm
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Earthing stick

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Multi-part, top section

With aluminium bayonet coupling and aluminium threaded coupling as end fitting.

1 ??store.product_de??

??store.product.number.short_de?? 769503 EST KS SQL 1500

??store.product.gtin_de?? 4013364003996, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 2.39 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Total length (l_G )	1600 mm
Max. load on the operating head	20 kg
Diameter	43 mm

Total length (l_G )	1600 mm
Max. load on the operating head	20 kg
Temperature range	–25 °C ... +55 °C
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (threaded coupling)	Aluminium alloy
Diameter	43 mm
Supporting head for	T pin shaft
Type of device	Earthing stick - top section

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Multi-part, intermediate section

With aluminium threaded coupling, connector with nut and bushing.

1 ??store.product_de??

??store.product.number.short_de?? 769504 EST ZS 1500

??store.product.gtin_de?? 4013364004559, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 2.39 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Total length (l_G )	1580 mm
Diameter	43 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Multi-part, end fitting

With connector and nut of the aluminium threaded coupling and end fitting with ring eye.

1 ??store.product_de??

??store.product.number.short_de?? 769505 EST ES 1500

??store.product.gtin_de?? 4013364004566, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 2.46 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Total length (l_G )	1590 mm
Diameter	43 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
