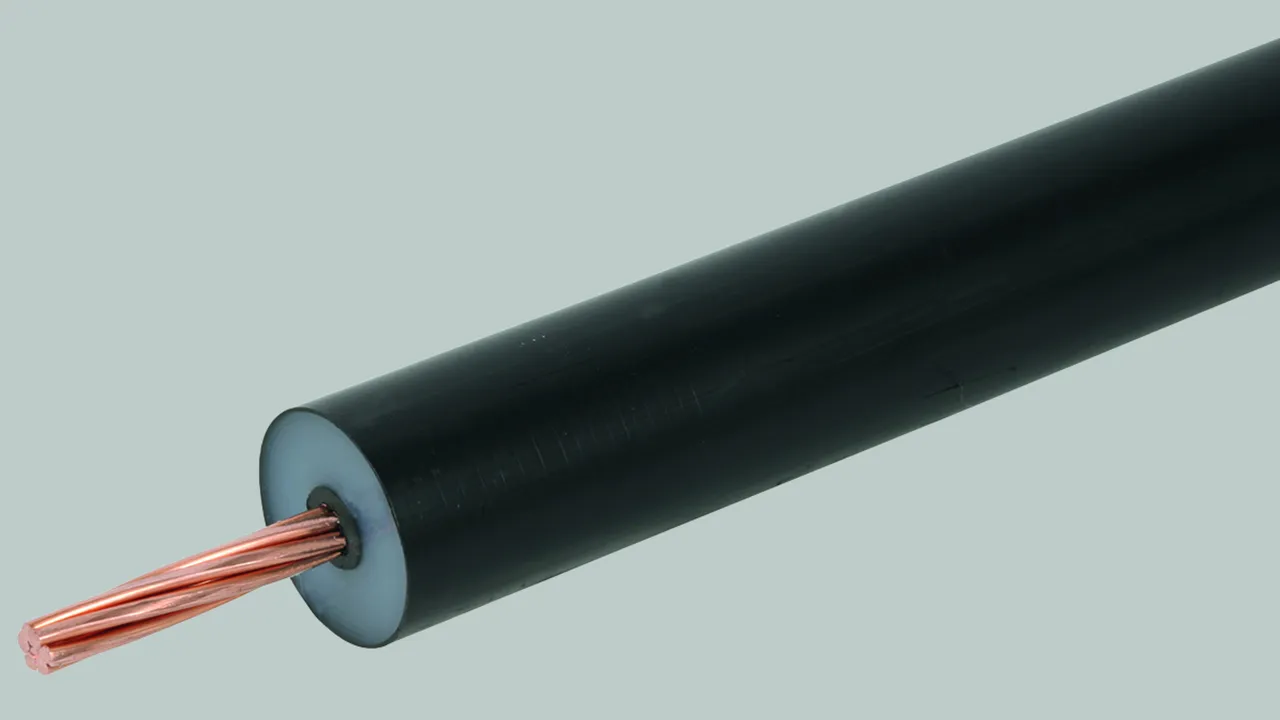

HVI power Conductor

High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts according to IEC 62305-3.

For use up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid building material).

The following maximum cable lengths therefore apply for the down conductor, depending on the class of lightning protection system (LPS):
LPS I max. 11.25 m
LPS II max. 15.0 m
LPS III/IV max. 22.50 m

The HVI power long Conductor meets the requirements of DIN IEC/TS 62561-8 (VDE V 0185-561-8).
Processing temperature -5 to +40 °C and permanent temperature range (in case of fixed installation) of -30 to +70 °C to be observed.

HVI power Conductor (pre-assembled, installation inside the tube)

With one head piece and one connection element (enclosed loose). Minimum order length 6 m, conductor length has to be stated when ordering (in steps of 0.5 m).

1 ??store.product_de??

??store.product.number.short_de?? 819160 HVI P RIV 90 27 L6M SW

??store.product.gtin_de?? 4013364152298, ??store.product.customsTariffNumber_de??: 85446010, ??store.product.grossWeight_de??: 5.47 kg, ??store.product.packaging_de??: 1.00 pc(s)
