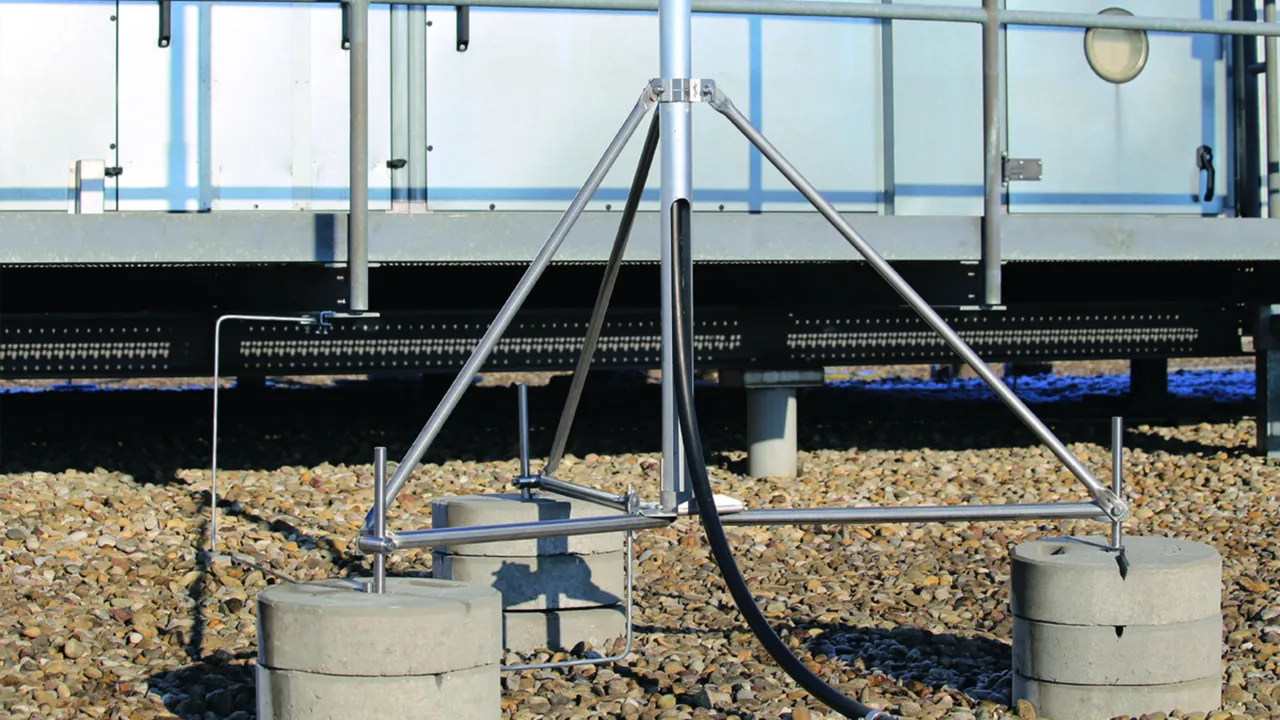

Tripods for Supporting Tubes with Side Outlet

Stands for holding HVI supporting tubes for internally/externally routed HVI Conductors in/on the supporting tube, with double clamp for connection of 2x Rd 8–10 mm. Adjustable to the roof slope up to max. 10° using a variable fixing on the base holder.

The stackable concrete bases, the plastic base plates and the base holder set for holding additional concrete bases are each available separately in the accessories.

Note: Please contact us here at DEHN to find out whether the material of the roof conductor holders and plastic base plates is compatible with the roof elements.

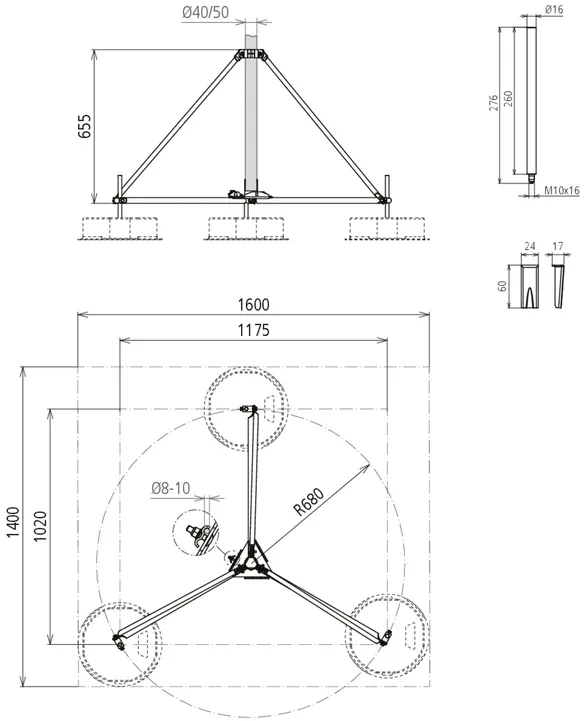

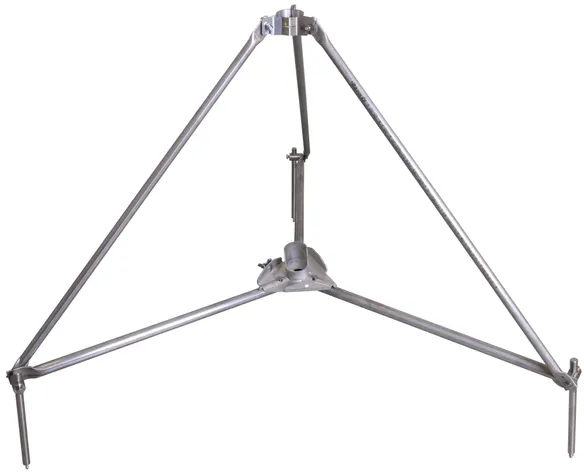

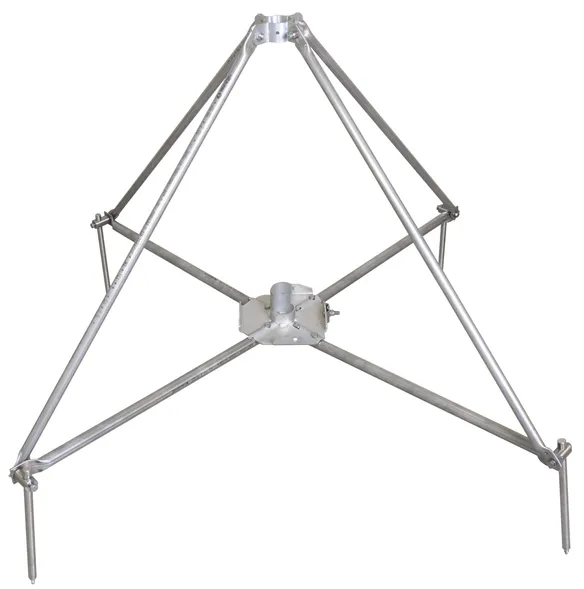

Tripod, small

For air-termination rods D40, DEHNiso Combi supporting tubes with air-termination rod / tip or HVI Conductor installed in / on the supporting tube.

1 ??store.product_de??

??store.product.number.short_de?? 107390 DBS KB D50 RA680 V2A

??store.product.gtin_de?? 4013364478466, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 7.75 kg, ??store.product.packaging_de??: 1.00 pc(s)
